We recently enabled a really cool feature in ZJIT that makes it feel like a Real Compiler™: the inliner! We’ll write more about it soon. In this post, we’ll talk about one excellent concrete benefit we are already seeing and how it optimizes blocks in pretty much every Ruby program.

I’ll start off with a refresher on how blocks work in the Ruby interpreter, then show you how ZJIT understands and optimizes that bytecode, and then show you the impact of the inliner.

Ruby: a refresher

In the beginning, there were loops.

arr = [1, 2, 3]
i = 0
sum = 0
while i < arr.length
  sum += arr[i]
  i += 1
end

People used them to navigate and manipulate variable-length structures, like arrays and strings. This was fine.

Then, in the 1970s, a small group of computer scientists at Palo Alto Research Center invented a programming language called Smalltalk. One of the core features of Smalltalk was that everything was an object and computation was done by sending messages to objects.

This meant that iteration wouldn’t do at all. Instead, we would have to send the do: message to the array object and pass it a block object.

#(1 2 3) do: [:a | sum := sum + a].

Then, in the 1990s, Matz, inspired by Smalltalk and Perl, created Ruby. We still have “normal” loops but we also have a very Smalltalk-y way of doing it, too:

arr = [1, 2, 3]
sum = 0
arr.each do |a|
  sum += a
end

When this program gets compiled to Ruby bytecode, it ends up looking like a mostly normal method call to each except that we pass a special kind of argument to it: a block argument.

To see how this works inside CRuby, we’re going to look at a listing of YARV bytecode—CRuby bytecode. For more on YARV, I recommend Kevin Newton’s excellent Advent of YARV.

Ignore most of the bytecode dump below except for the instruction at 0009, the send instruction. We are send-ing (see? a message!) each with the block argument block in <main> (passed a different way than “normal” arguments, hence the argc:0).

$ ruby --dump=insns /tmp/arrayeach.rb
== disasm: #<ISeq:<main>@/tmp/arrayeach.rb:1 (1,0)-(5,3)>
local table (...)
[ 2] arr@0      [ 1] sum@1
0000 duparray                   [1, 2, 3]                 (   1)[Li]
0002 setlocal_WC_0              arr@0
0004 putobject_INT2FIX_0_                                 (   2)[Li]
0005 setlocal_WC_0              sum@1
0007 getlocal_WC_0              arr@0                     (   3)[Li]
0009 send                       <calldata!mid:each, argc:0>, block in <main>
0012 leave
...continued below...

This block in <main> from the bytecode listing above is the generated name of the instruction sequence (bytecode) corresponding to the block we passed to each. Its code, shown below, is the next thing in the bytecode dump. You can see the usage of local variables sum and a via getlocal and setlocal variants and also opt_plus, which represents addition (+). Again, the details are not terribly important:

...continued from above...
== disasm: #<ISeq:block in <main>@/tmp/arrayeach.rb:3 (3,9)-(5,3)>
local table (...)
[ 1] a@0<AmbiguousArg>
0000 getlocal_WC_1              sum@1                     (   4)[LiBc]
0002 getlocal_WC_0              a@0
0004 opt_plus                   <calldata!mid:+, argc:1, ARGS_SIMPLE>[CcCr]
0006 dup
0007 setlocal_WC_1              sum@1
0009 leave                                                (   5)[Br]
$

To make this work, Array has an each method. This each method takes in its optional block argument and calls it once for every element in the array.

As with most of the core data structures, Array’s methods tend to be written in C and each is no different. Here is its nice and short definition with comments added by me:

VALUE
rb_ary_each(VALUE ary)
{
    long i;
    // Some debug-mode-only checks
    ary_verify(ary);
    // If we didn't pass a block in, return an enumerator object
    RETURN_SIZED_ENUMERATOR(ary, 0, 0, ary_enum_length);
    // We passed a block in, so call it for every element
    for (i=0; i<RARRAY_LEN(ary); i++) {
        rb_yield(RARRAY_AREF(ary, i));
    }
    return ary;
}

You can’t really see the block parameter to the C code because it’s passed in a special location on the Ruby VM’s own stack called the block handler. All you need to know is that rb_yield knows where to find that and how to call it.

There’s just one more thing, which is… hang on, weren’t we building a JIT to optimize Ruby code? How are we going to optimize this C code?

JITs: a refresher

Rewriting code from C to Ruby means that the JIT compiler gets a chance to introspect the run-time behavior and code. This means that, over time, as the compiler and the runtime system grow together, more and more code might get rewritten in Ruby. This started happening a couple of years ago with YJIT.

YJIT precipitated some interesting changes to Ruby VM internals. For example, in 2022, Array#each being written in C started to hurt: it was an opaque blob that the JIT couldn’t reason about. So Kokubun submitted a PR to rewrite it in Ruby. After some back and forth, in 2024, Kokubun landed a different PR that everyone was happy with.

class Array
  def each # :nodoc:
    Primitive.attr! :inline_block, :c_trace, :without_interrupts

    unless defined?(yield)
      return Primitive.cexpr! 'SIZED_ENUMERATOR(self, 0, 0, ary_enum_length)'
    end
    i = 0
    until Primitive.rb_jit_ary_at_end(i)
      yield Primitive.rb_jit_ary_at(i)
      i = Primitive.rb_jit_fixnum_inc(i)
    end
    self
  end
end

Ah, finally. A version that JITs can reason about.

I keep saying “reason about” and what that means concretely here is a) that it’s written in a format that the JIT can ingest and optimize: Ruby, and b) mostly a brief rehashing of the key lessons in the venerable Smalltalk (!) paper Efficient Implementation of the Smalltalk-80 System (PDF):

  • Though systems may offer very dynamic behavior, people don’t frequently make use of wild features all over the place
    • Most people pass fewer than 4 types of objects through a given method
    • As a corollary, even if there are many classes in a system, code locality is super important, and we can take advantage of that
    • Also, most people do not define, re-define, and otherwise continuously modify method definitions

(And if you don’t believe me that the lessons still apply, check out the excellent paper Who You Gonna Call (PDF) by Sophie Kaleba, Octave Larose, Richard Jones, and Stefan Marr.)

So JITs like to watch what types of objects flow through methods before compiling them. And JITs like to, since they know the types of objects, cache method lookups and specialize method invocations on those objects.

For example, take a look at this code:

def next_capacity(x)
  x.length * 2 + 1
end

x could be anything. There is no way of knowing its type by looking at the code. This means that the length method could be anything. Furthermore, there is no way of knowing what the return type of x.length is, so we can’t specialize the method lookups or invocations of * or + either.

But! Per our lessons above, likely only a few types flow through this code. Say the JIT’s profiler notices that x has historically been an Array. Then we might reasonably assume that it will continue to be an Array, so when we compile the method, we add a run-time type check: if the type is no longer an Array, jump back into the interpreter.

Let’s see what optimized code ZJIT can construct by combining profiling information with the above bytecode. ZJIT operates on its own high-level intermediate representation called, uncreatively, HIR. In the following HIR snippet, we can see this very run-time type check (“guard”) for the Array class:

fn next_capacity@file.rb:8:
...
bb3(v9:BasicObject, v10:BasicObject):  # v9 is self and v10 is x
  PatchPoint NoSingletonClass(Array@0xdecaf1)
  PatchPoint MethodRedefined(Array@0xdecaf2, length@0xdecaf3, cme:0xdecaf4)
  v35:ArrayExact = GuardType v10, ArrayExact recompile
  v36:CInt64 = ArrayLength v35
  v37:Fixnum = BoxFixnum v36
  # ...

(with real pointers replaced by fake ones for readability)

Because classes are, among other things, collections of methods, this type information tells us what the call target of x.length is: it’s Array#length! We have a special fast code snippet to read an array’s length so we do that instead of a method call.

And in case the methods ever get changed out from underneath us, we leave behind these markers called PatchPoint that invalidate the code.

Finally, because we know that the result of Array#length is always a small integer (Fixnum), we can special case the method lookups for * and + as well.

fn next_capacity@file.rb:8:
...
bb3(v9:BasicObject, v10:BasicObject):  # v9 is self and v10 is x
  PatchPoint NoSingletonClass(Array@0xdecaf)
  PatchPoint MethodRedefined(Array@0xdecaf, length@0xdecaf, cme:0xdecaf)
  v35:ArrayExact = GuardType v10, ArrayExact recompile
  v36:CInt64 = ArrayLength v35
  v37:Fixnum = BoxFixnum v36
  v18:Fixnum[2] = Const Value(2)
  PatchPoint MethodRedefined(Integer@0xdecaf, *@0xdecaf, cme:0xdecaf)
  v41:Fixnum = FixnumMult v37, v18
  v23:Fixnum[1] = Const Value(1)
  PatchPoint MethodRedefined(Integer@0xdecaf, +@0xdecaf, cme:0xdecaf)
  v45:Fixnum = FixnumAdd v41, v23
  CheckInterrupts
  Return v45

There you have it. This is how JITs work: observe, assume, specialize. So why am I telling you all this? How does this circle back to blocks?

Well, blocks work not quite the same way, but similarly. Instead of having an object that we call a method on, we just have the target instruction sequence1. But if we observe that the block argument, in its special location, has been consistently one object, we can specialize the call to it.

This is more or less fine for some cases of code. For example, in the following code snippet, we only have one caller to custom_iterator, so its profiled block will be monomorphic (one observed shape).

def custom_iterator
  yield 1
  yield 2
  yield 3
end

custom_iterator do |x|
  puts x
end

This reinforces what we know and love about the Smalltalk-80 paper: code locality wins! Yes!

But unfortunately this falls apart when we start thinking about all of the core library methods (and potentially the methods and classes you have stashed away in the grab-bag utils.rb in your application). Those methods are probably megamorphic (many many observed shapes). They probably see all sorts of stuff because they are general-purpose utilities that everybody needs, all the time.

One such example in the Ruby core library is the venerable Array#each that we saw earlier. Because there are a million different call sites to Array#each across your application and each probably passes a totally different block, we’re in an unhappy situation. How can we possibly optimize for so many different blocks? What happened to our code locality? How do we fix this?

The code locality is in another tower

It’s okay. Code locality still rules. Look at all the various callers of Array#each. They all pass a different, but constant2, block at the call-site:

def method_a(some_array)
  some_array.each do |x|
    puts x
  end
end

def method_b(some_array)
  some_array.each do |x|
    puts x*2
  end
end

def method_c(some_array)
  some_array.each do |x|
    puts x*4
  end
end

So the code locality that we need in Array#each to optimize the code is one level up at the caller. If we can use that call context, we can specialize the code.

YJIT accomplishes this by splitting, which is a very natural transformation for basic block versioning and tracing. Such compilers are good at following code paths as they would be executed and putting together context across method calls. However, YJIT’s heuristic for splitting blocks is based on manual annotations: it will only kick in for certain Ruby library functions specially annotated with Primitive.attr! :inline_block (and the name is a bit of a misnomer).

The team that builds ZJIT, a method JIT, decided not to add splitting facilities. We could split methods (and blocks), but we have an easier time reasoning about larger code units than YJIT does because we optimize an entire method at once. So instead, ZJIT chooses to get call context by inlining.

Inlining

Method inlining refers to copying the body of the callee into the caller. In the above example, it means copying the body of Array#each into each of method_a, method_b, and method_c. I don’t mean the Ruby code and I don’t mean the bytecode: I mean the HIR. ZJIT does this by building the HIR of the callee (Array#each) into the existing HIR of the caller (method_a, …).

The illustrious Kevin Menard wrote ZJIT’s inliner and he’ll write a post about all the details soon. It’s pretty interesting stuff.

For now, we can take a look at the (lightly edited) result of Array#each being inlined into method_a. The details don’t matter, but there are two things I want to call out:

  • What used to be a dynamic invokeblock is now what we call InvokeBlockIseqDirect because we know from the call context what block method_a is passing to Array#each.
  • What used to be a method call is now a loop: the condition check is in bb10, the body is in bb9, and the stuff after the loop is bb13/bb4. If you’re interested, try to find the iteration variable and where it gets incremented. See the footnote3 for the answer.

This is a massive improvement over the previous very generic operations.

fn method_a@/tmp/arrayeach.rb:2:
# ...
bb3(v9:BasicObject, v10:BasicObject):
  # ...
  v55:Fixnum[0] = Const Value(0)
  Jump bb10(v25, v55)
bb10(v68:ArrayExact, v69:Fixnum):
  v73:CInt64 = ArrayLength v68
  v74:Fixnum = BoxFixnum v73
  v75:BoolExact = FixnumGe v69, v74
  v77:CBool = Test v75
  CondBranch v77, bb13(), bb9(v68, v69)
bb13():
  CheckInterrupts
  Jump bb4(v68)
bb9(v90:ArrayExact, v91:Fixnum):
  v96:CInt64 = UnboxFixnum v91
  v97:BasicObject = ArrayAref v90, v96
  v99:CPtr = GetEP 0
  v100:CInt64 = LoadField v99, :VM_ENV_DATA_INDEX_SPECVAL@-0x8
  v101:CInt64[-4] = Const CInt64(-4)
  v102:CInt64 = IntAnd v100, v101
  v103:BasicObject = InvokeBlockIseqDirect (0x16f3d5968), v102, v97
  v107:Fixnum[1] = Const Value(1)
  v108:Fixnum = FixnumAdd v91, v107
  PatchPoint NoEPEscape(each)
  Jump bb10(v90, v108)
bb4(v114:BasicObject):
  PopInlineFrame
  PatchPoint NoEPEscape(method_a)
  CheckInterrupts
  Return v114

You may notice that there is still one call in the loop: the call to the block (InvokeBlockIseqDirect). That’s next on our list to tackle. We are optimistic that we will soon also be able to inline block calls. Then the whole thing will really be just a loop!

The code that enables us to reason about which block got passed into the inlined callee (Array#each) only landed a couple of days ago (July 10, 2026), written by Luke Gruber. This was one of Luke’s first changes to ZJIT.

So what does performance look like?

Well, for starters, the microbenchmarks that we use as “performance unit tests” for specific aspects of Ruby went wild. Some benchmarks that were using block-based looping got much faster; they were previously bounded by ZJIT’s block invocation performance.

Take a look at the cfunc_itself benchmark, which tests that we can fold away the call to Ruby’s built-in itself method. ZJIT ends up optimizing the times method to invoke the do block directly, and the do block gets optimized to nothing but a guard on the self’s class to make sure it hasn’t changed.

run_benchmark(500) do
  500000.times do |i|
    itself
    itself
    itself
    itself
    itself
    itself
    itself
    itself
    itself
    itself
  end
end

Because we had previously optimized the body away, the result of the direct block invocation is a massive speedup:

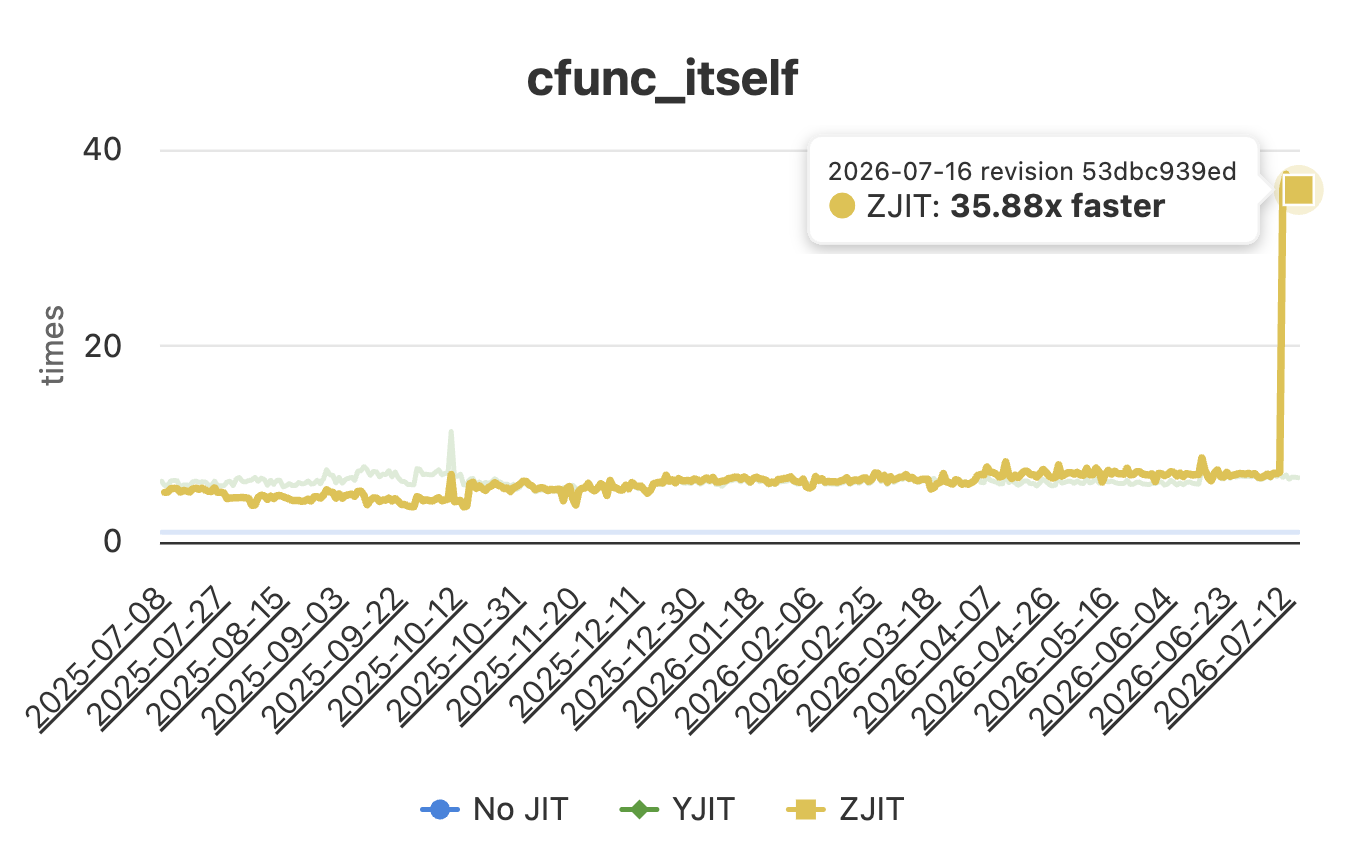

The yellow line represents ZJIT speedup over the interpreter. Higher is better. 35x!
The yellow line represents ZJIT speedup over the interpreter. Higher is better. 35x!

Other benchmarks also kind of stop making sense because of the amount of inlining. Our bmethod benchmark, which benchmarked how fast we can call methods defined with define_method, also stopped measuring anything of use. We’re going to have to rework the benchmark to be more fair…

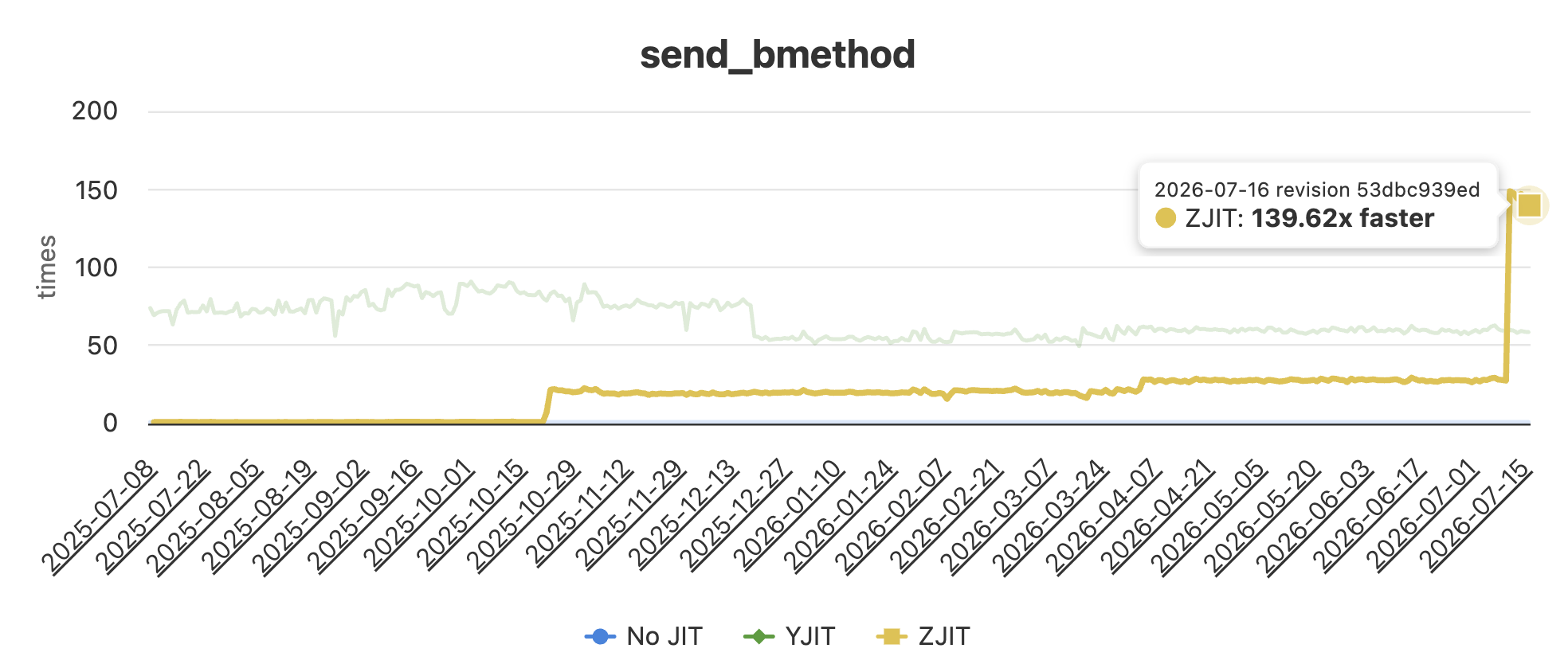

The yellow line represents ZJIT speedup over the interpreter. Higher is better. 139x!
The yellow line represents ZJIT speedup over the interpreter. Higher is better. 139x!

As expected, larger Rails benchmarks don’t see a ton of change; they exercise a diffuse set of features so optimizing any one feature bumps the big benchmarks only a little bit.

I am excited to see what happens when we can fully turn each and friends into call-less loops!

Wrapping up

Code locality rules. The inliner helps inject more of it and reason across method calls. ZJIT, a little over one year old, is growing up! :’)

We’re still tuning the inliner knobs. Some of the code in this post required tweaking --zjit-inline-threshold to convince the compiler to inline Array#each into method_a because of Array#each’s size. It will take some time for the ZJIT developers to figure out reasonable defaults.

Try out our HIR explorer at tryzjit.fly.dev. Try out ZJIT in your application by adding the --zjit flag to a Ruby over 4.0. Thanks for reading and see you next time.

  1. Mostly. I am glossing over nil, procs, ifuncs, etc. But the common path is by and away iseq blocks. ↩

  2. It’s not always the case that these methods are called with a constant block iseq. Sometimes they are called with the &:symbol form, for example. Or with the &some_block_variable form. In that case, we can use an inline cache to (with a guard) make it constant once more. But we have not implemented that yet, because it is rarer. ↩

  3. The iteration variable is v91! You can see it get used as an array index when it gets unboxed as v96 and passed to ArrayAref. You can also see it get incremented with FixnumAdd and the constant 1. In bb10 it has a different name, v69, which gets checked against the array length. ↩
